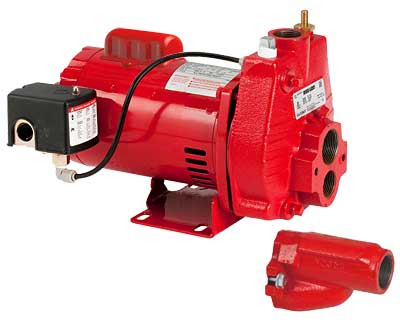

Red Lion Convertible Jet Pump and Injector Kit, 20 gpm, 1 hp

Only 1 left
SKU: REL-602038
Regular price Login to view pricing

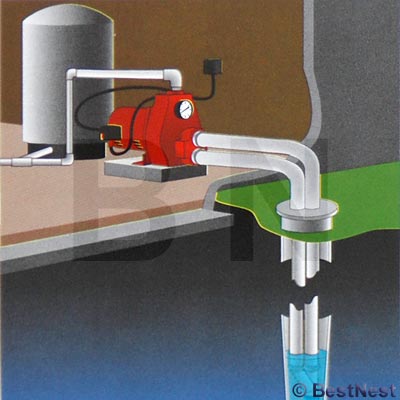

Easily pump water from your shallow or medium depth well to a holding tank using this Red Lion Convertible Jet Pump and Injector Kit. This versatile, rugged unit is designed for use with both shallow wells up to 25' deep, or in deeper wells up to 90' deep with the included injector kit. The cast iron body ensures a long life as well as durability, and the glass filled thermoplastic impeller creates an efficient water flow. An attached pressure switch keeps the pump running between 30 and 50 PSI, and has an automatic shut off function to protect the unit from sudden pressure changes. The included injector kit attaches to the front of the pump for shallow wells, or can be installed within your deeper well for more lift. Its heavy duty, single phase motor can use either 115 or 230 volts, offering a reliable unit for years to come, and its 1 horsepower, 3450 RPMs will meet all your home water supply needs. Use a single 1 1/4" pipe on the inlet for a shallow well, or remove the injector kit from the inlet and use a dual 1 1/4" pipe for deeper wells. For significant runs, increase the pipe size to 1 1/2" to maximize water flow. The top outlet accepts 1" MNPT pipe, and can be directed to a service line or water tank. Place this pump on a level surface near your well, secured to the ground with its integrated bottom bracket, or place it atop a water storage tank to keep it within easy reach. Ensure that the unit is fully primed prior to first use, to keep the pump running safely and efficiently. Move water from your deep or shallow well to your holding tank easily with this Convertible Jet Pump and Injector Kit. Two year limited warranty.

Model Number: RJC-100
Dimensions: 14"L x 8.5"W x 9"H without injector kit
Inlet: 1 1/4" NPT
Discharge: 1" FNPT
Maximum Flow: 20 gpm
Water Depth: up to 90'
Power: 1 hp, 16.4 or 8.2 amps
Voltage: single phase, 115 or 230 volts
Construction: cast iron, metal, plastic
Mfg. Warranty: 2 year limited warranty
