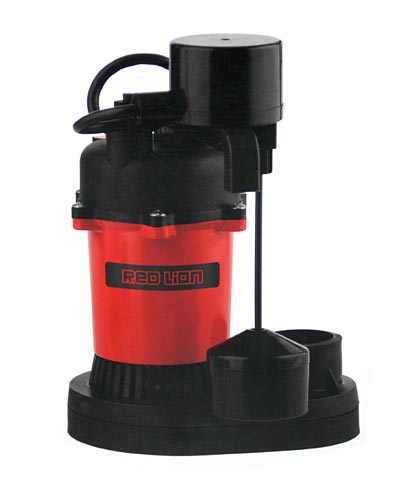

Remove water from your sump basin easily with the Red Lion Sump Pump with Vertical Float. This versatile unit easily moves effluent or wastewater from your basin or lift station, and its attached vertical float ensures safe use. The item can sit in any 11" diameter or larger pit, while its reinforced, thermoplastic body remains hardy and corrosion resistant. This unit uses 115 volts for power, connecting to a grounded outlet with its 3 pronged plug. A band of vertical slats on the base of the pump intakes water, moving it as needed and cooling the thermally protected motor. The bearings in this motor are lubricated with dielectric oil, for a long lasting unit, while its 1/2 horsepower design is perfect for your average water removal needs. The outlet easily accepts 1 1/2" MNPT fittings, and the 8' long cord offers versatility in placement. Another, 7.5' long cord with a piggyback outlet enables you to use this item with its switch, for a protected setup. Safely and effectively remove water from your sump basin with this Sump Pump with Vertical Float. Two year limited warranty.

Pump Performance
Use this chart to determine the proper size pump for your basin. The height of the water outlet above the surface of the water is called the Head Height. Gallons Per Hour (GPH) represents the maximum amount of water your pump is capable of pushing at a given Head Height. To ensure the pump's best possible performance, reduce frictional losses by using the largest diameter hose possible.

Head Height (in feet)	Gallons per Hour
0'	4300
5'	3840
10'	3000
15'	2220
20'	1440
28'	shutoff

Model #: RL-SP50V
Dimensions: 8"L x 7"W x 11.5"H, 8'L and 7.5'L cord
Outlet: accepts 1 1/2" MNPT threaded fittings
Maximum Flow: 4300 gph
Maximum Head: 28' shutoff
Power: 1/2 hp, 5.3 amps
Voltage: single-phase, 115V
Mfg. Warranty: 2 year limited warranty

Red Lion Sump Pump with Vertical Float, RL-SP50V, 4300 gph
